| MOQ: | 1 SET |
| Price: | 43000 USD |
| Standard Packaging: | Wooden box |
| Delivery Period: | 30 days after payment |
| Payment Method: | 30% down payment, 70% balance payment |
| Supply Capacity: | 300MW per year |

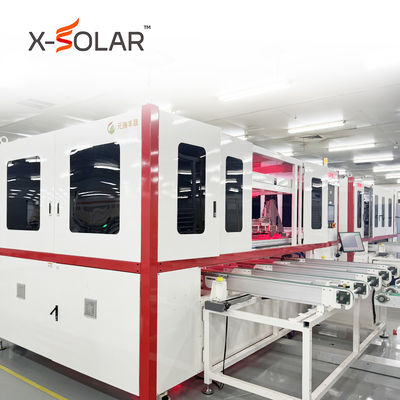

The welding head features an integrated straight-line design with high integration, making installation and adjustment convenient. It has a secondary alignment function for solar cells, ensuring high positioning accuracy. Switching is convenient; for the same specification of solar cells, changing the number of grid lines and grid spacing does not require changing the welding head. Supports tab punching and black tab tape welding, and can be upgraded to 10-string single bypass and 12-string double bypass welding functions.
| parameter | Data |
| Cycle Time | 16s/Module |
| Modules Transfer Height | 980±30mm |
| Glass Specifications | L: 1630-2600mm, W: 986-1450mm |
| Adjustable String Spacing | 2-6mm |
| Tab Specification | Width: 4-8mm, Thickness: 0.2-0.4mm, supplied in rolls (changing the width requires part replacement) |
| Material Reel Specification | Inner Hole: 16mm to 25mm, Outer Diameter: ≤200mm |
| Welding Method | Electromagnetic Welding |
| Automatic Alignment Accuracy Range | ≤+1mm |
| Secondary String Placement Accuracy | ≤±0.5mm |
| Power | Rated Power 20kW, Peak Power 40kW |
| Air Consumption | 0.6-0.8MPa, 2000L/min |
| Weight | 5000kg |
| Equipment Dimensions | L 5050mm * W 5050mm * H 2500mm |
Beijing X-Solar Energy Co., Ltd. was found in 2020, and headquartered in Beijing. It's a science and technology innovative energy enterprises with the main business of future cell R&D, flexible photovoltaic modules, building photovoltaic module production, high-end equipment manufacturing, production line delivery, and AI-CITY wisdom energy management services.
In July 2023, the company's first demonstration factory, Jiangsu X-Solar Green-building Technology Co., Ltd., was established in Jiangyin CNBM Jetion Industrial Park. Meanwhile, Jiangsu YuanTeng FengSheng Intelligent Manufacturing Technology Co., Ltd., a wholly-owned equipment company of the company, delivered the world's first "three-in-one" automatic production line for Jiangyin base. The production line can be compatible with the production of three categories: X-Solar Light shadow series (flexible PV modules), X-Solar Light rhyme series (building PVtile modules), X-Solar Light Curtain series (building PV wall modules), and customized products. X-Solar PV series products have the advantages of integrating architectural aesthetics, complying with design specifications and creating energy value, which have been widely recognized and praised by customers in domestic and overseas.
In 2024, the company has added two regional centers in Shanghai and Guangzhou of China, and set up the Hong Kong X-Solar Future Energy Research Institute, and overseas sales companies in Australia, Italy, Germany, Saudi Arabia and Argentina. The company has launched a global layout to provide sustainable energy products and services to many countries, and has contributed to the "carbon neutrality and carbon peak".
|
|
