Thin Film Flexible PV Panels Solar Module 13.13A Optimum Operating Current

MOQ:	5800 watt
Price:	0.22-0.28 USD per watt
Standard Packaging:	70 pieces per pallet
Delivery Period:	15 days after payment
Payment Method:	30% down payment, 70% balance payment
Supply Capacity:	300MW per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

X-solar

Certification

CE/CQC/3C

Model Number

Model NO.:

XSCM-580-T

Application:

Photovoltaic Venues, Greenhouse, Sun-shading Device, Curtain Wall, Roof

Max. Power:

Optimum Operation Voltage:

44.19 V

Optimum Operating Current:

13.13A

Open- Circuit Voltage:

53.03V

Short-Circuit Voltage:

13.86A

Module Operating Temperature Range:

-40-85

Max. System Voltage:

DC 1000/ 1500V (IEC)

Max. Fuse Current:

Power Tolerance Range:

Rated Operating Temperature Of The Cell:

44 Degree

Max. Powewr Temperature Coefficient:

-0.26 %

Open-Circuit Voltage Temperature Coeffic:

-0.24%

Short-Circuit Voltage Temperature Coeffi:

0.04%

Transport Package:

Wooden Box

Specification:

2260*1219*3mm

Trademark:

X-solar

Origin:

China Jiangyin

HS Code:

8541420000

Production Capacity:

50000 Pieces Per Year

Package Size:

226.00cm * 122.00cm * 0.30cm

Package Gross Weight:

9.100kg

Highlight:

Thin Film Flexible PV Panels

Flexible PV Panels 13.13A

Solar Thin Film PV Panels

Product Description

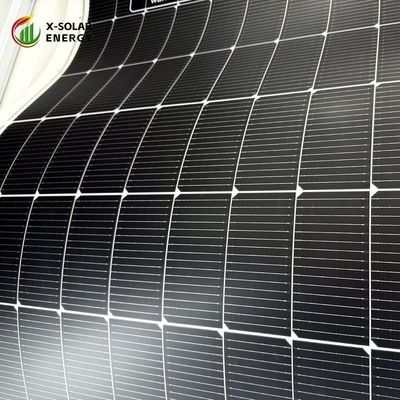

580W Soft Solar Panel For Roof Material

Thin Film Flexible Solar Module with -0.24% Open-Circuit Voltage Temperature Coeffic and 13.13A Optimum Operating Current

Basic information

Basic information	Data
cell type	TOPCon cell 182*91 mm
cell arrangement	144 pcs(12*12)
module size	226012193 mm
Module weight	9.1KG
Junction box	Enclosure rating IP68
Output cable	4mm2, 500mm cable net length. cable length can be customized
Connector registration	MC4 compatibility
Frame	N/A
Front static load (snow pressure)	2400Pa
Rear static load (wind pressure)	N/A

Packing Details

transportation	Platform Lorry	Platform Lorry	Container
size	13m	17.5	40 degree
pallet	22	28	/
piece/pallet	45	45	/
Total pieces	990	1260	/

Beijing X-Solar Energy Co., Ltd. was found in 2020, and headquartered in Beijing. It's a science and technology innovative energy enterprises with the main business of future cell R&D, flexible photovoltaic modules, building photovoltaic module production, high-end equipment manufacturing, production line delivery, and AI-CITY wisdom energy management services.

In July 2023, the company's first demonstration factory, Jiangsu X-Solar Green-building Technology Co., Ltd., was established in Jiangyin CNBM Jetion Industrial Park. Meanwhile, Jiangsu YuanTeng FengSheng Intelligent Manufacturing Technology Co., Ltd., a wholly-owned equipment company of the company, delivered the world's first "three-in-one" automatic production line for Jiangyin base. The production line can be compatible with the production of three categories: X-Solar Light shadow series (flexible PV modules), X-Solar Light rhyme series (building PVtile modules), X-Solar Light Curtain series (building PV wall modules), and customized products. X-Solar PV series products have the advantages of integrating architectural aesthetics, complying with design specifications and creating energy value, which have been widely recognized and praised by customers in domestic and overseas.

In 2024, the company has added two regional centers in Shanghai and Guangzhou of China, and set up the Hong Kong X-Solar Future Energy Research Institute, and overseas sales companies in Australia, Italy, Germany, Saudi Arabia and Argentina. The company has launched a global layout to provide sustainable energy products and services to many countries, and has contributed to the "carbon neutrality and carbon peak".

Thin Film Flexible PV Panels Solar Module 13.13A Optimum Operating Current 14

1.Q:How about the power generation efficiency, durability, and ease of installation of lightweight and flexible photovoltaic modules?
A:Our soft modules adopt the latest technology, with high power conversion rate and durability. The unique flexible design makes installation more flexible and convenient, and can adapt to various complex terrain and curved surface installation requirements. Compared with conventional crystalline silicon modules, our soft modules only need to be directly attached to the surface with building structural adhesive, and do not need to be installed with brackets, saving installation raw materials and labor costs.

2.Q:How do the prices of photovoltaic flexible modules compare with those of conventional crystalline silicon modules?
A:We understand your concern about price. Although the initial investment may be slightly higher than that of conventional crystalline silicon modules, considering the high power generation efficiency and long life of photovoltaic flexible modules, its long-term benefits will far exceed those of conventional crystalline silicon modules. In addition, our products also have lower installation and maintenance costs and longer service life, bringing you a higher return on investment.

3. Q:Whether PV flexible modules are suitable for our specific installation environment or project requirements.
A:Photovoltaic flexible modules have a wide range of application scenarios, including but not limited to roofs, carports, boat roofs, tents, awnings, etc. Its unique flexible design makes installation no longer limited by the limitations of traditional rigid materials, and can easily adapt to various complex environments and project requirements. Our professional technical team will provide customized solutions based on your specific needs.

4 Q:How about the after-sales service and quality guarantee policy?
A:Our soft module products have a 12-year warranty and a 25-year power warranty. Our flat and curved tiles have a 15-year warranty and a 30-year power warranty. We attach great importance to after-sales service and customer satisfaction. We provide comprehensive after-sales service support, including product installation guidance, regular maintenance inspections, and fast-response repair services to ensure that you have no worries after purchase.

5 Q:What are the differences and advantages of your products over other companies' products?
A:In the field of photovoltaic modules, we have always maintained a leading position in technology and market. Our products are superior to similar products in terms of performance, durability, and ease of installation. We are fully aware of the fierce market competition, so we continue to invest in research and development and innovation to provide better products and services to meet customer needs.

6 Q:Policy support and subsidies: Different regions have different policy support and subsidy levels for photovoltaic products, and customers may have questions about this.
A:Depending on the policies of different regions, you may enjoy different amounts of subsidies and tax benefits. We are willing to consult relevant information for you.

7 Q:What kind of project cases do you have?
A:Our products have a wide range of applications, such as: building BIPV, mobile energy, agricultural and animal husbandry greenhouses, etc. For details, please see our product case collection.

8 Q:What are the precautions for installing your products?
A:The following matters need to be noted:
I. Please be sure to read the installation manual of our products in detail before installation
II. Prepare all necessary preparation tools and auxiliary materials in advance
III. Check whether the installation environment, electrical connections, etc. meet the installation requirements
V. Perform step-by-step installation and safe operation according to the manual
VI. Perform debugging and inspection after installation is completed
VII. Keep relevant certificates: purchase certificate, installation manual and any relevant warranty information

9 Q:What is the additional load after installation?
A:Under normal circumstances, the surface load that our products can withstand is 2400pa. We understand that the specific needs of each project may be different, so we also provide customized products and services to meet your unique load and performance requirements.
