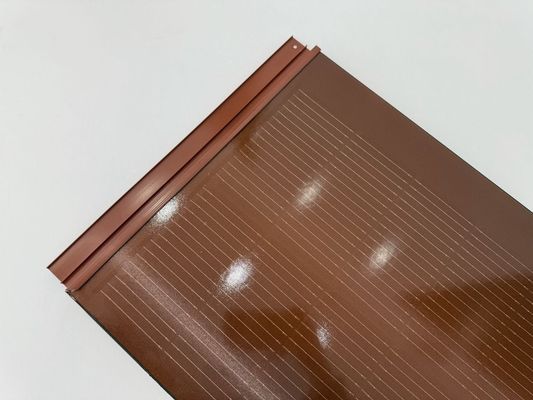

Residential Solar Roofing Tiles 120W Building Photovoltaic Roof Shingles

Residential Solar Roofing Tiles 120W Building Photovoltaic Roof Shingles

MOQ: 1200 watts
Price: 0.83-0.88 USD per watt
Standard Packaging: 30 pieces per pallet
Delivery Period: 30 days after payment
Payment Method: 30% down payment, 70% balance payment
Supply Capacity: 300MW per year
Detail Information
Place of Origin
China
Brand Name
X-solar
Certification
CE/CQC/3C
Model Number
XSDFM-120-T
Model NO.:
XSDFM-120-T
Application:
Photovoltaic Venues, Greenhouse, Sun-shading Device, Curtain Wall, Roof
Max. Power:
120W
Optimum Operation Voltage:
9.62V
Optimum Operating Current:
12.89A
Open- Circuit Voltage:
11.07V
Short-Circuit Voltage:
13.57A
Module Operating Temperature Range:
-40-85
Max. System Voltage:
DC 1000/ 1500V (IEC)
Max. Fuse Current:
25A
Power Tolerance Range:
0-5W
Rated Operating Temperature Of The Cell:
44 Degree
Max. Powewr Temperature Coefficient:
-0.26 %
Open-Circuit Voltage Temperature Coeffic:
-0.24%
Short-Circuit Voltage Temperature Coeffi:
0.04%
Transport Package:
Wooden Box
Specification:
1630*440*29mm
Trademark:
X-solar
Origin:
China Jiangyin
HS Code:
8541420000
Production Capacity:
50000 Pieces Per Year
Package Size:
165.00cm * 45.00cm * 3.00cm
Package Gross Weight:
9.500kg
Highlight:

Solar Roofing Tiles 120W

,

Residential Solar Roofing Tiles

,

Building Photovoltaic Roof Shingles

Product Description

Top Energy Residential Solar Roofing Tiles for Sustainable Building Needs Package Size 165.00cm * 45.00cm * 3.00cm

120W Flat Tile Modules Solar Panel For Roof Material
Product Description
Top Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar System
Top Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar System

Product Parameters
Top Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar System
Top Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar System

Product Advantage

Top Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar SystemTop Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar System
Product Application

Top Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar SystemTop Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar SystemTop Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar System
Top Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar System
Top Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar System
Top Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar System

Basic information
Basic informationData
cell typeTOPCon cell 182*91 mm
cell arrangement32 pcs(2*16)
module size1630*440*29 mm
Module weight9.5KG
Junction boxEnclosure rating IP68
Output cable4mm2, 500mm cable net length. cable length can be customized
Connector registrationMC4 compatibility
FrameN/A
Front static load (snow pressure)2400Pa
Rear static load (wind pressure)N/A

Packing Details
transportationPlatform LorryPlatform LorryContainer
size13m 17.540 degree
pallet226340
piece/pallet454242
Total pieces199026461764

Company Profile

Top Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar System         Beijing X-Solar Energy Co., Ltd. was found in 2020, and headquartered in Beijing. It's a science and technology innovative energy enterprises with the main business of future cell R&D, flexible photovoltaic modules, building photovoltaic module production, high-end equipment manufacturing, production line delivery, and AI-CITY wisdom energy management services.

              In July 2023, the company's first demonstration factory, Jiangsu X-Solar Green-building Technology Co., Ltd., was established in Jiangyin CNBM Jetion Industrial Park. Meanwhile, Jiangsu YuanTeng FengSheng Intelligent Manufacturing Technology Co., Ltd., a wholly-owned equipment company of the company, delivered the world's first "three-in-one" automatic production line for Jiangyin base. The production line can be compatible with the production of three categories: X-Solar Light shadow series (flexible PV modules), X-Solar Light rhyme series (building PVtile modules), X-Solar Light Curtain series (building PV wall modules), and customized products. X-Solar PV series products have the advantages of integrating architectural aesthetics, complying with design specifications and creating energy value, which have been widely recognized and praised by customers in domestic and overseas.

            In 2024, the company has added two regional centers in Shanghai and Guangzhou of China, and set up the Hong Kong X-Solar Future Energy Research Institute, and overseas sales companies in Australia, Italy, Germany, Saudi Arabia and Argentina. The company has launched a global layout to provide sustainable energy products and services to many countries, and has contributed to the "carbon neutrality and carbon peak".

Top Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar System
Production Process

Top Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar System
Top Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar SystemTop Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar System

Exhibition Display

Top Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar SystemTop Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar System
FAQ

Top Energy Residential Solar Roofing Tiles Sustainable Building Integrated Solar Shingles Waterproof New Flat Plate Solar System

1.Q:How about the power generation efficiency, durability, and ease of installation of lightweight and flexible photovoltaic modules?
    A:Our soft modules adopt the latest technology, with high power conversion rate and durability. The unique flexible design makes installation more flexible and convenient, and can adapt to various complex terrain and curved surface installation requirements. Compared with conventional crystalline silicon modules, our soft modules only need to be directly attached to the surface with building structural adhesive, and do not need to be installed with brackets, saving installation raw materials and labor costs.

2.Q:How do the prices of photovoltaic flexible modules compare with those of conventional crystalline silicon modules?
    A:We understand your concern about price. Although the initial investment may be slightly higher than that of conventional crystalline silicon modules, considering the high power generation efficiency and long life of photovoltaic flexible modules, its long-term benefits will far exceed those of conventional crystalline silicon modules. In addition, our products also have lower installation and maintenance costs and longer service life, bringing you a higher return on investment.

3. Q:Whether PV flexible modules are suitable for our specific installation environment or project requirements.
    A:Photovoltaic flexible modules have a wide range of application scenarios, including but not limited to roofs, carports, boat roofs, tents, awnings, etc. Its unique flexible design makes installation no longer limited by the limitations of traditional rigid materials, and can easily adapt to various complex environments and project requirements. Our professional technical team will provide customized solutions based on your specific needs.

4 Q:How about the after-sales service and quality guarantee policy?
    A:Our soft module products have a 12-year warranty and a 25-year power warranty. Our flat and curved tiles have a 15-year warranty and a 30-year power warranty. We attach great importance to after-sales service and customer satisfaction. We provide comprehensive after-sales service support, including product installation guidance, regular maintenance inspections, and fast-response repair services to ensure that you have no worries after purchase.

5 Q:What are the differences and advantages of your products over other companies' products?
    A:In the field of photovoltaic modules, we have always maintained a leading position in technology and market. Our products are superior to similar products in terms of performance, durability, and ease of installation. We are fully aware of the fierce market competition, so we continue to invest in research and development and innovation to provide better products and services to meet customer needs.

6 Q:Policy support and subsidies: Different regions have different policy support and subsidy levels for photovoltaic products, and customers may have questions about this.
    A:Depending on the policies of different regions, you may enjoy different amounts of subsidies and tax benefits. We are willing to consult relevant information for you.

7 Q:What kind of project cases do you have?
    A:Our products have a wide range of applications, such as: building BIPV, mobile energy, agricultural and animal husbandry greenhouses, etc. For details, please see our product case collection.

8 Q:What are the precautions for installing your products?
    A:The following matters need to be noted:
    I. Please be sure to read the installation manual of our products in detail before installation
    II. Prepare all necessary preparation tools and auxiliary materials in advance
    III. Check whether the installation environment, electrical connections, etc. meet the installation requirements
    V. Perform step-by-step installation and safe operation according to the manual
    VI. Perform debugging and inspection after installation is completed
    VII. Keep relevant certificates: purchase certificate, installation manual and any relevant warranty information

9 Q:What is the additional load after installation?
    A:Under normal circumstances, the surface load that our products can withstand is 2400pa. We understand that the specific needs of each project may be different, so we also provide customized products and services to meet your unique load and performance requirements.
