560W Flexible PV Module - XSFM-560-T2 Configuration Review

Detail Information

Product Description

Detail Information

Place of Origin

Jiangyin,China

Brand Name

X-SOLAR

Certification

Request exact model/configuration documents

Model Number

XSFM-560-T2

Model NO.:

XSFM-560-T2

Maximum Power (Pmax):

560 W

Maximum Power Voltage (Vmp):

43.18 V

Maximum Power Current (Imp):

12.97 A

Open-Circuit Voltage (Voc):

52.58 V

Short-Circuit Current (Isc):

13.69 A

Mounting Bracket Configuration:

Confirm The Supplied Construction

Module Dimensions:

Refer To The Matching Construction Table; Confirm Version

Module Weight:

Configuration-specific; Refer To The Matching Table

Packing:

Confirm Modules Per Pallet And Gross Shipping Weight

Product Description

XSFM-560-T2 | 560W Photovoltaic Module

Review the model electrical data and the documented constructions below. Dimensions, module weight and packing depend on the supplied construction; confirm the exact version before quotation or installation. Confirm availability and complete system components with the quotation.

Electrical data at standard test conditions

Parameter	Value
Maximum power (Pmax)	560 W
Maximum power voltage (Vmp)	43.18 V
Maximum power current (Imp)	12.97 A
Open-circuit voltage (Voc)	52.58 V
Short-circuit current (Isc)	13.69 A

STC: irradiance 1000 W/m², cell temperature 25 degrees C, AM1.5 spectrum. These module values do not determine the voltage rating or protective devices of an installed system.

Documented reference constructions

Construction	Module dimensions (mm)	Module weight	Modules per pallet	Modules per 40 ft container
Without mounting bracket	2260 x 1200 x 2.7	8.4 kg	70	1190
With mounting bracket, 2260 x 1245 construction	2260 x 1245 x 25	13.5 kg	37	666
With mounting bracket, 2290 x 1230 construction	2290 x 1230 x 25	12.4 kg	40	720

The specification references list Frame: N/A for these constructions. Mounting brackets and module frames are separate items. Packing quantities are reference figures for the matching construction. Confirm current availability, packing and gross shipping weight for the actual order; request gross shipping weight separately from module weight.

Project and document review

Request the datasheet, installation instructions, certificates, test reports and written warranty terms for the exact model and supplied construction. Review permitted curvature, fixing method, waterproofing, structural loads and electrical protection for the project. Confirm the fire classification, mounting method and protective devices for the supplied configuration and complete project.

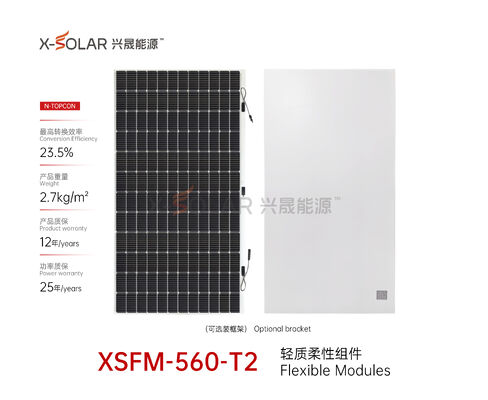

Existing product photos are for reference; confirm the supplied design with the matching technical documents.

Contact X-SOLAR to confirm the supplied configuration and request technical documents.
